Applications
Ideal as an ergonomic work microscope for, e.g., assembly, repair, and testing in microelectronics, precision engineering, lab work, and quality assurance—also suitable for use in research and education.

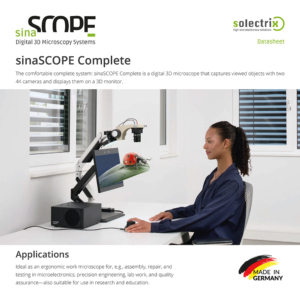

sinaSCOPE Complete
The comfortable complete system
sinaSCOPE Complete is a digital 3D microscope that captures viewed objects with two 4K cameras and displays them on a 3D monitor.
- 3D live image with depth information, no 3D glasses required
- View objects comfortably on a big 4K monitor
- Ergonomic working thanks to large work space, the head remains freely movable
- Zoom factor 7× to 36×
- Simplified documentation through 3D photos at the press of a button
- Space-saving concept with mini PC that can also serve as a monitor base
- Flexible spring-loaded microscope stand
- Comfortable operation via SpaceMouse
Interested in a live presentation of sinaSCOPE? Feel free to contact us!
Unit price: 9.300,00 € (plus VAT, plus shipping costs)
Scope of Delivery
Image Processing Electronics
sinaSCOPE Control Compact – space-saving mini PC
Camera Heads
Solectrix SXC5 twin camera heads with 50-mm lenses
Display
Solectrix SXD2 autostereoscopic 15.6″ 4K monitor
Software
SX Camera ISP, SX 3D Analyzer, SX Monitor License
Accessories (included):
- Comfortable spring-loaded table-mount microscope stand
- LED ring light
- Monitor stand for mounting on base (included) or on top of the mini PC
- Camera cables (1.5 m)
- HDMI cable
- USB cables
- 3Dconnexion SpaceMouse
Technical Data
Screen Size
15.6″ (aspect ratio 16:9)
Camera & Display Resolution
4K UHD (3840 × 2160 pixels)
Framerate
60 fps
Latency (Camera to Display)
100 ms typ.
Zoom
7× to 36× (with default 50 mm lenses)
Field of View
47 mm × 26.5 mm (with default 50-mm lenses)
