Digital 3D Microscopy Systems

• 3D Live Image without Glasses

• 4K Display

• Comfortable Working

Choose the best approach for your needs:

Product

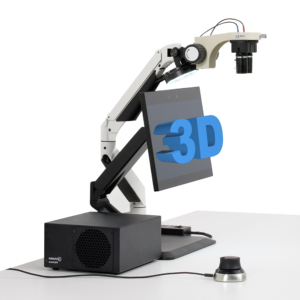

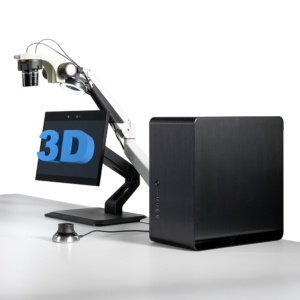

sinaSCOPE Digital 3D Microscope Systems

sinaSCOPE is a digital 3D microscopy platform from Solectrix. A complete sinaSCOPE system consists of a microscope equipped with two digital 4K cameras, a 3D display and an image processing unit. It provides a live 3D image without the need for 3D glasses.

The system allows for improved workplace ergonomics as the head remains freely movable. Fatigue-free working over a longer period of time is possible, preventing a lack of concentration.

The Solectrix camera heads are equipped with a highly sensitive 11 mm sensor from Sony and deliver 60 images per second in razor-sharp 4K UHD resolution. The “real 3D” concept ensures synchronous recording of the 3D image data while processing the 3D image data within a single FPGA guarantees uniform image properties. The high image quality of the Solectrix Image Pipeline optimized with low latency is decisive for the functionality of the system. The sinaSCOPE background software uses image analysis and image correction to ensure an optimal 3D image. The image data of the microscope is available for digital processing.

Components of a complete system:

  • Microscope with 4K camera heads (Solectrix SXC4)
  • Image processing electronics (desktop PC format)
  • 4K UHD autostereoscopic 15.6″ display (Solectrix SXD2)
  • Software (SX Camera ISP, SX 3D Analyzer, SX Monitor License)
  • Accessories (cables, keyboard, mouse)

Product

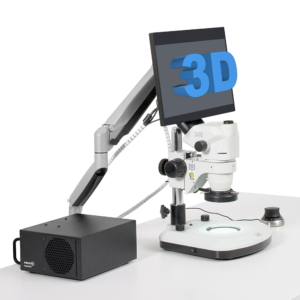

sinaSCOPE Digital Upgrade Kits for Stereo Microscopes

With sinaSCOPE digital upgrade kits, all optical, eyepiece-based stereo microscopes can be expanded to a digital microscope with two 4K cameras and a 3D monitor. The system  provides a live 3D image without the need for 3D glasses.

The digitalization provides an unlimited working and viewing area and allows for improved workplace ergonomics – the head remains freely movable. Fatigue-free working over a longer period of time is possible, preventing a lack of concentration. The image data of the microscope is available for digital processing.

The Solectrix camera heads are equipped with a highly sensitive 11 mm sensor from Sony and deliver 60 images per second in razor-sharp 4K UHD resolution. The “real 3D” concept ensures synchronous recording of the 3D image data while processing the 3D image data within a single FPGA guarantees uniform image properties. The high image quality of the Solectrix Image Pipeline optimized with low latency is decisive for the functionality of the system.

Until now, the calibration and operation of 3D systems without assistance was very complex and adjustment-intensive. To support the user, the sinaSCOPE system therefore has a background software that uses image analysis and image correction to ensure an optimal 3D image. The image data of the microscope is available for digital processing.

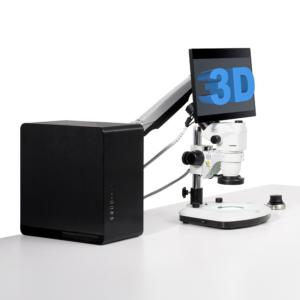

Components sinaSCOPE Professional:

  • 4K camera heads (Solectrix SXC4) to upgrade your analog stereoscopic microscope
  • Image processing electronics (desktop PC format)
  • 4K UHD autostereoscopic 15.6″ display (Solectrix SXD2)
  • Software (SX Camera ISP, SX 3D Analyzer, SX Monitor License)
  • Accessories (cables, keyboard, mouse)
Solution

sinaSCOPE Custom-Tailored Solutions

If you prefer to use a custom PC system, you can! We offer a complete integration kit with the required software, the ­sinaSCOPE 4K miniature camera heads, the same proFRAME PCIe® grabber card used in our own processing units, and our SXD2 15.6″ autostereoscopic display.

Components sinaSCOPE OEM:

  • 4K camera heads (Solectrix SXC4) to upgrade your analog stereoscopic microscope
  • Capturing module (Solectrix proFRAME PCIe® board) for integration into your ISP system
  • 4K UHD autostereoscopic 15.6″ display (Solectrix SXD2)
  • Software (SX Camera ISP, SX 3D Analyzer, SX Monitor License)
  • Accessories (cables)
YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

sinaSCOPE and proFRAME are registered trademarks of Solectrix GmbH. All other trademarks are the property of their respective owners.
