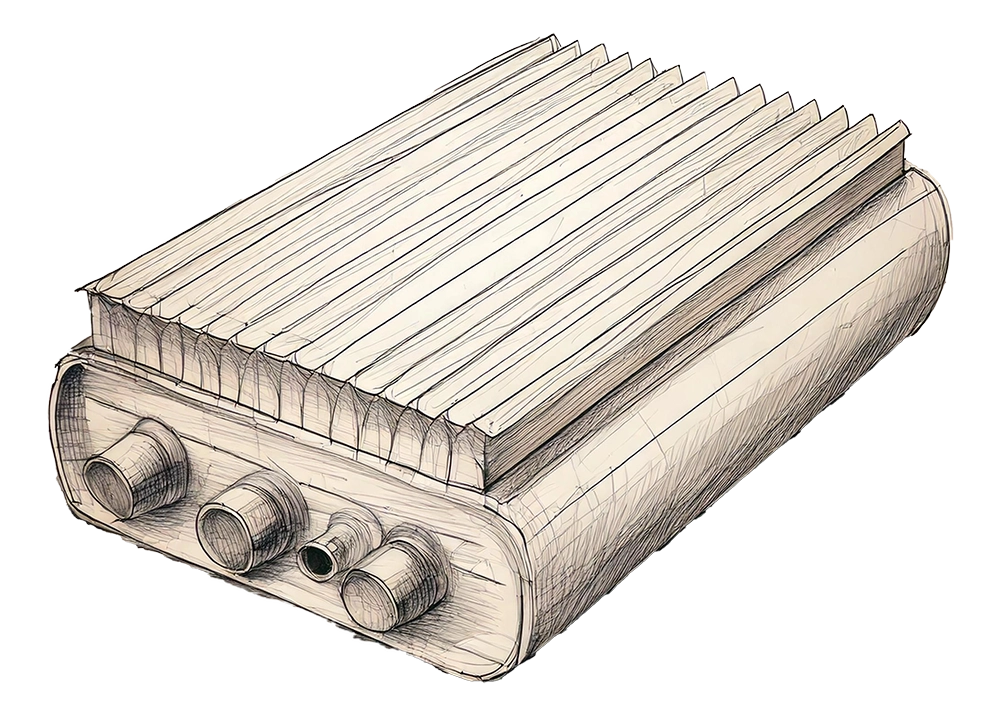

SXVPU Custom Model

A special design perfectly suited for your application.

Based on your requirements, we develop an SXVPU model with the required features and interfaces in a housing tailored to your application.

Specifications

Expansion: Wireless, AI...
Hailo-8 Edge AI Processor with 26 TOPS
or WiFi module
or 5G network module
CPU
Quad-core Arm® Cortex®-A53 MPCore™ up to 1.5 GHz
GPU
Mali™-400 MP2 up to 667 MHz
Chipset
SoC integrated
Trusted Platform Module (TPM)
Infineon 2.0, Security TPM2.0 supporting IEC62443
System Memory
DDR4 4 GB onboard 64-bit
Storage
eMMC 16 GB, 64 MB QSPI FLASH

Expansion
M.2 Key M, 22 mm × 42 mm (PCIe Gen2 x4)
Construction
Universal aluminium profile enclosure
Pressure compensation element
Protection Class
IP65 (IP67 optional)
Operating Temperature
−40 °C to +75 °C (65 °C w/ max. performance, 85 °C w/ min. performance)
Weight (net/gross)
1.2 kg (2.65 lb) / 1.5 kg (3.31 lb)
OS Support
PetaLinux (Yocto-based)
Mounting
Wall brackets

Software
- Customization of the control algorithms for specific vehicle models or applications
- Implementation of user-defined functions or features tailored to the customer’s needs
- Optimization of the software for performance, efficiency, or emissions
Communication Protocols
- Support for various communication protocols (e.g., CAN, LIN, Ethernet) depending on the customers requirements
- Customization of the data transfer rates or formats
User Interface
- Customization of the user interface for diagnosis tools or interfaces used by the customer
- Provision of specific display functions or formats
Customer-Specific Documentation
- Creation of custom-tailored documentation describing the specific customizations and functions
- Provision of educational material for the end users or technicians

Hardware
- Customization of the connection points (connectors, pins) for integration in various vehicle models
- Modification of the housing size or form to fit into specific installation locations
- Selection of specific components (e.g., sensors, actuators) depending on customer requirements
- Customization of the protection class of the housing to meet the customer’s specific requirements
Functional Aspects
- Implementation of specific diagnosis and error message systems
- Customization of safety functions, e.g., integration of security protocols or standards
Test and Validation Services
- Conduction of specific tests to ensure that the ECU meets the customer requirements
- Provision of validation reports or certificationss
Labeling
- Option to create original product and company labels to strengthen identification and brand presence

The following interfaces are a basis. They can be customized or complemented on demand.

Customization of the number of interfaces (more or fewer) depeding on the customer’s specific requirements
Integration of other interfaces that are required to expand the functionality

Camera Input
4× GMSL2 via SMA connectors (FAKRA connectors optional)
Wireless Antenna
2× via SMA connector
Ethernet/PoE
1× 10/100/1000 Mbps Ethernet with hardware timestamping (IEEE 1588)
Digital I/O
1× CAN 2.0
1× General Purpose Input 12 V / 24 V
1× Status LED (RGB)
Power Supply
9 to 36 VDC + 1× Power Enable Input

SXVPU is a registered trademark of Solectrix GmbH. All other trademarks are the property of their respective owners.
