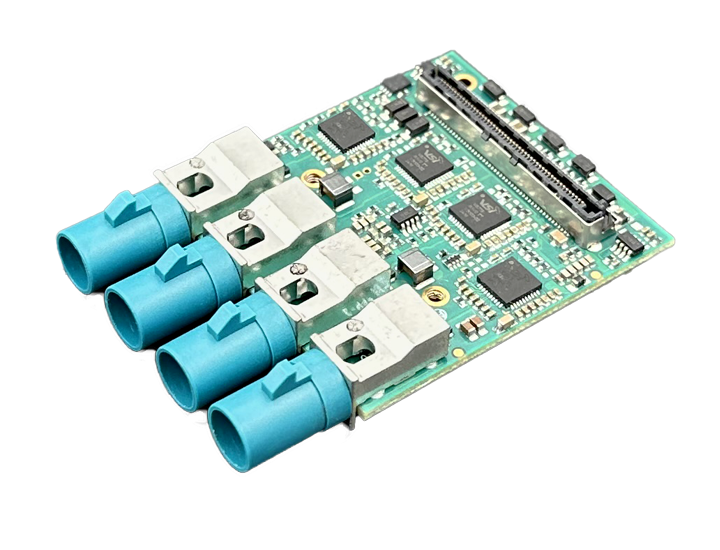

camAD3 QUAD VS775S (2xIN/2xOUT)

  • 4× Microchip VS775S

    ASA Motion Link (ASA-ML) serializer/deserializer, configured as 2× serializer, 2× deserializer

  • 2× camera output

    on Rosenberger FAKRA connectors

  • 2× camera input

    on Rosenberger FAKRA connectors

  • Power over Coax (PoC)

    Outputs: Pass-through from ECU to camera
    Inputs: 8 to 26 V, external supply for PoC voltage supported (optional)

  • 4 CSI-2® interfaces to base board
  • Lattice MachXO3™ management FPGA
  • Lock/Error status LEDs
  • FSYNC trigger synchronization from base board

Matching accessories:

Cable set for proFRAME, various lengths on request

Matching base boards:

Find more information on this adapter on the proFRAME Blog:
Coming soon: New proFRAME camera adapters camAD3 QUAD VS775S for ASA Motion Link
