Applications
Ideal as an ergonomic work microscope for, e.g., assembly, repair, and testing in microelectronics, precision engineering, lab work, and quality assurance—also suitable for use in research and education.
sinaSCOPE Basic
The smart entry point

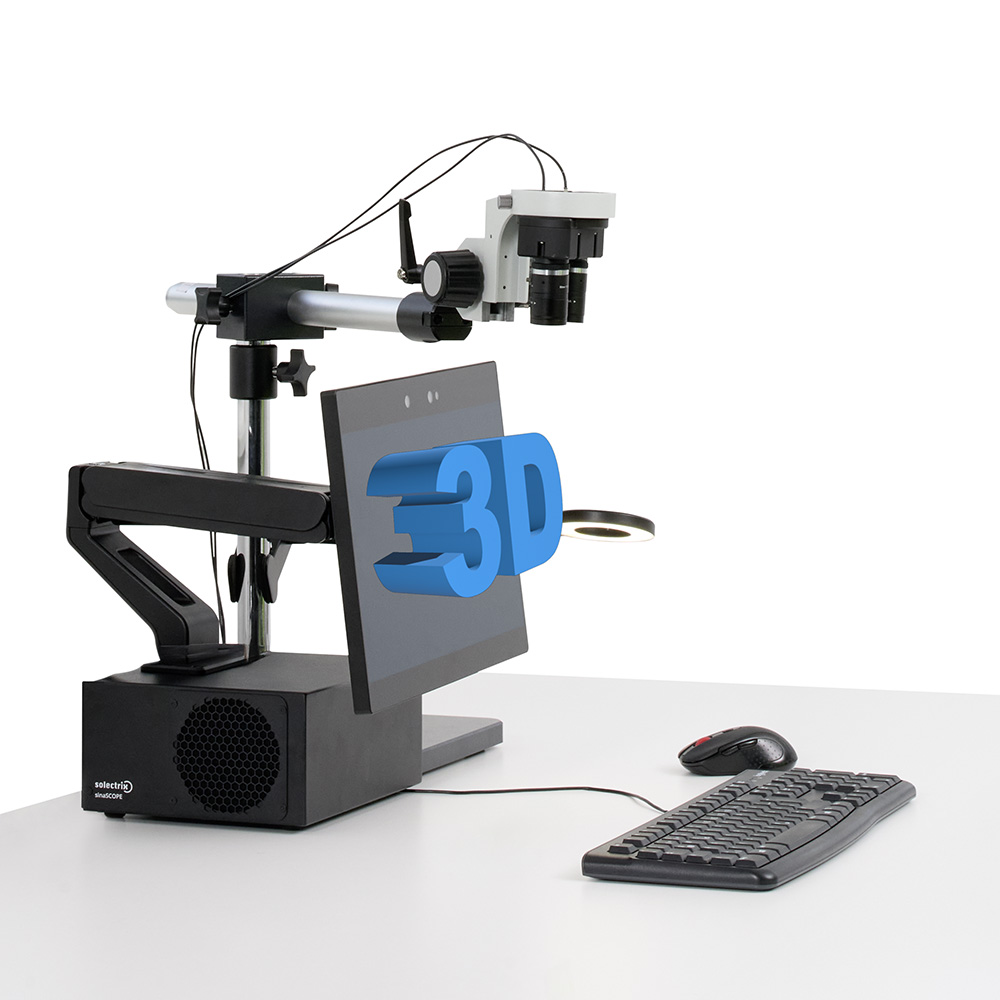

sinaSCOPE Basic is a digital 3D microscope that captures viewed objects with two 4K cameras and displays them on a 3D monitor.
- 3D live image with depth information, no 3D glasses required
- View objects comfortably on a big 4K monitor
- Ergonomic working thanks to large work area, the head remains freely movable
- Zoom factor 7× to 36×
- Simplified documentation through 3D photos at the press of a button
- Space-saving concept with mini PC that can also serve as a monitor base
- Easy operation via wireless mouse and keyboard
Interested in a live presentation of sinaSCOPE? Feel free to contact us!
Unit price: 6.700,00 € (plus VAT, plus shipping costs)
Scope of Delivery
Image Processing Electronics
sinaSCOPE Control Compact – space-saving mini PC
Camera Heads
Solectrix SXC5 twin camera heads with 50-mm lenses
Display
Solectrix SXD2 autostereoscopic 15.6″ 4K monitor
Software
SX Camera ISP, SX 3D Analyzer, SX Monitor License
Accessories (included):
- Simple microscope stand with base

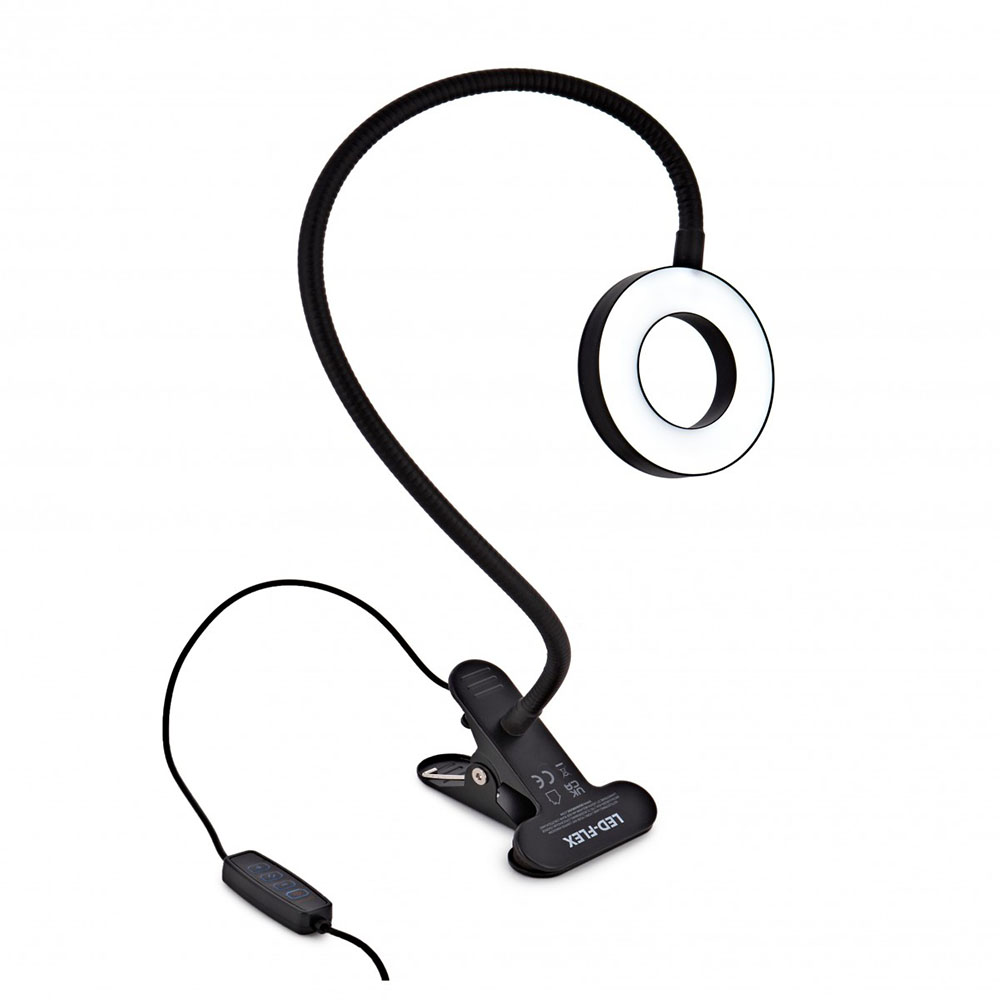

- Attachable LED ring light
- Monitor stand for mounting on base (included) or on top of the mini PC
- Camera cables (1.5 m)
- HDMI cable
- USB cable

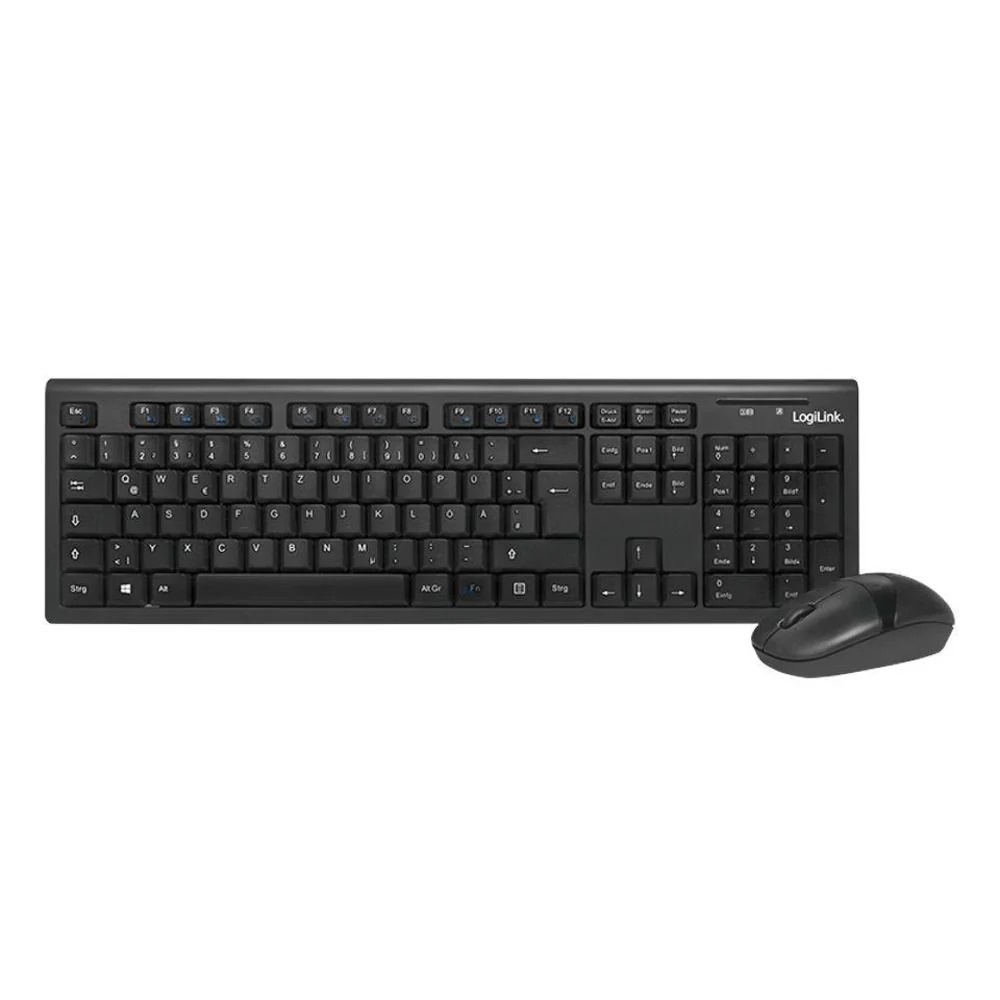

- Wireless keyboard and mouse
Technical Data
Screen Size
15.6″ (aspect ratio 16:9)
Camera & Display Resolution
4K UHD (3840 × 2160 pixels)
Framerate
60 fps
Latency (Camera to Display)
100 ms typ.
Zoom
7× to 36× (with default 50 mm lenses)
Field of View
47 cm × 26.5 cm (with default 50-mm lenses)
